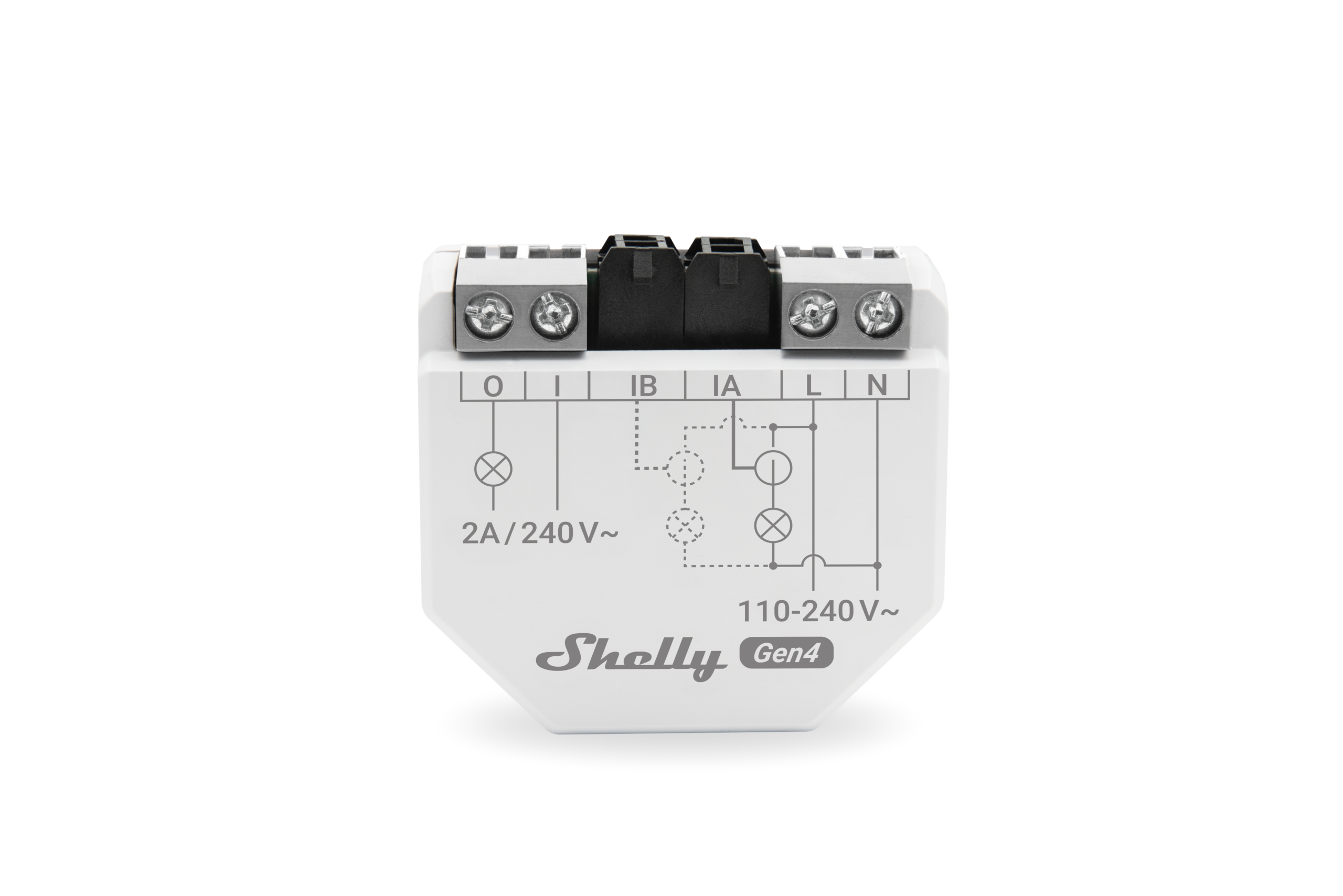

Shelly EM Gen4

What is THE Shelly em gen4?

Next-gen energy meter featuring Wi-Fi 6, Bluetooth, Zigbee, and Matter, with at least 30 days of local data logs at 1-minute resolution and 16 MB flash memory.

  • New – Multi-protocol connectivity: Bluetooth 5, Wi-Fi 6, Zigbee
  • New – Matter-certified: Works with Matter “out of the box.”
  • New – Upgraded hardware: Powerful new chip with 16 MB flash memory
  • New – Local data logging: Stores data on device for аt least 30 days of 1 minute data resolution
  • New – Compatible current transformers: 50 A, 80 A, and 120 A options
  • Single-phase, two-channel measurement
  • Supports up to 2 current transformers for contactless metering
  • Dry contact switch for contactor control
  • Safety features: Overheating, overvoltage, overcurrent, and overload protection

*Shelly EM Gen4 comes with a 50 A clamp included in the pack

VIEW SPECIFICATIONS SHELLY MOBILE APP

Features

smart scedules purple

Smart Schedules

Automate device actions based on your preferred time settings.

real time clock purple

Real-Time Clock

Keeps accurate time to ensure your schedules run precisely.

advanced integrations purple

Advanced Integrations

Supports scripting, webhooks, MQTT, WebSocket, RPC, HTTP, and HTTPS.

Smart scenes purple

Local and Cloud-Based Automations

Enables flexible control through Matter and multi-protocol connectivity.

Use Cases

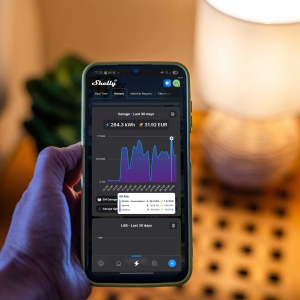

Power Consumption Monitoring

Power Consumption Monitoring

Monitor the power consumption of connected devices in real-time. This information can be valuable for understanding energy usage patterns and making informed decisions to reduce consumption.

Appliance Health Check

Appliance Health Check

Monitor the power usage of your appliances to ensure optimal performance and longevity. By tracking individual energy consumption patterns, you can proactively identify potential issues before they become costly problems. Unexpected spikes or shifts in power usage are early warning signs that an appliance may need attention, allowing you to maintain efficiency and avoid downtime.

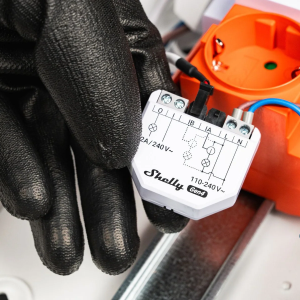

Heavy load control with contactors

Heavy load control with contactors

Besides precise power metering, Shelly EM Gen4 allows contactor control of heavy-load appliances such as powerful water heaters, hot tubs, heat pumps, and large kitchen appliances. This way, you can both monitor and control the consumption of larger appliances around your home or facility and maximize your savings.

Gen4 Devices

Experience next-level smart home automation with Shelly Gen4 novelties.
Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee, and Matter.
Choose your connection and set up your Shelly device to work with your preferred smart home network in no time.

Wi-Fi
Bluetooth
Zigbee
Matter

Caution

Installation of certain Shelly devices must be done by a qualified electrician or authorised installer.

Find an Installer

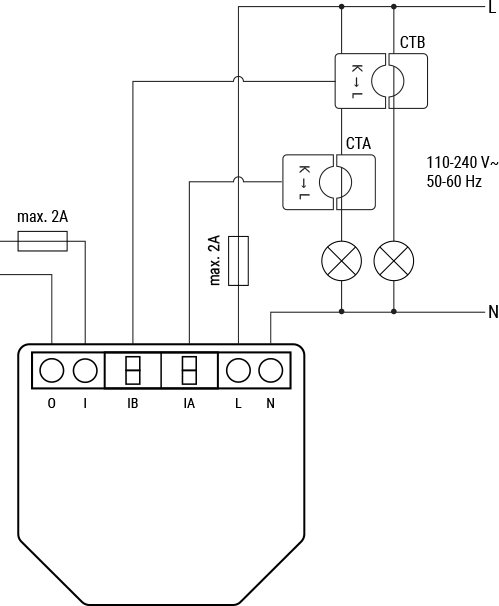

Diagrams

Specifications

Physical

Size (HxWxD):

37x42x16 mm / 1.46x1.65x0.63 inch

Weight:

26 g / 0.92 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

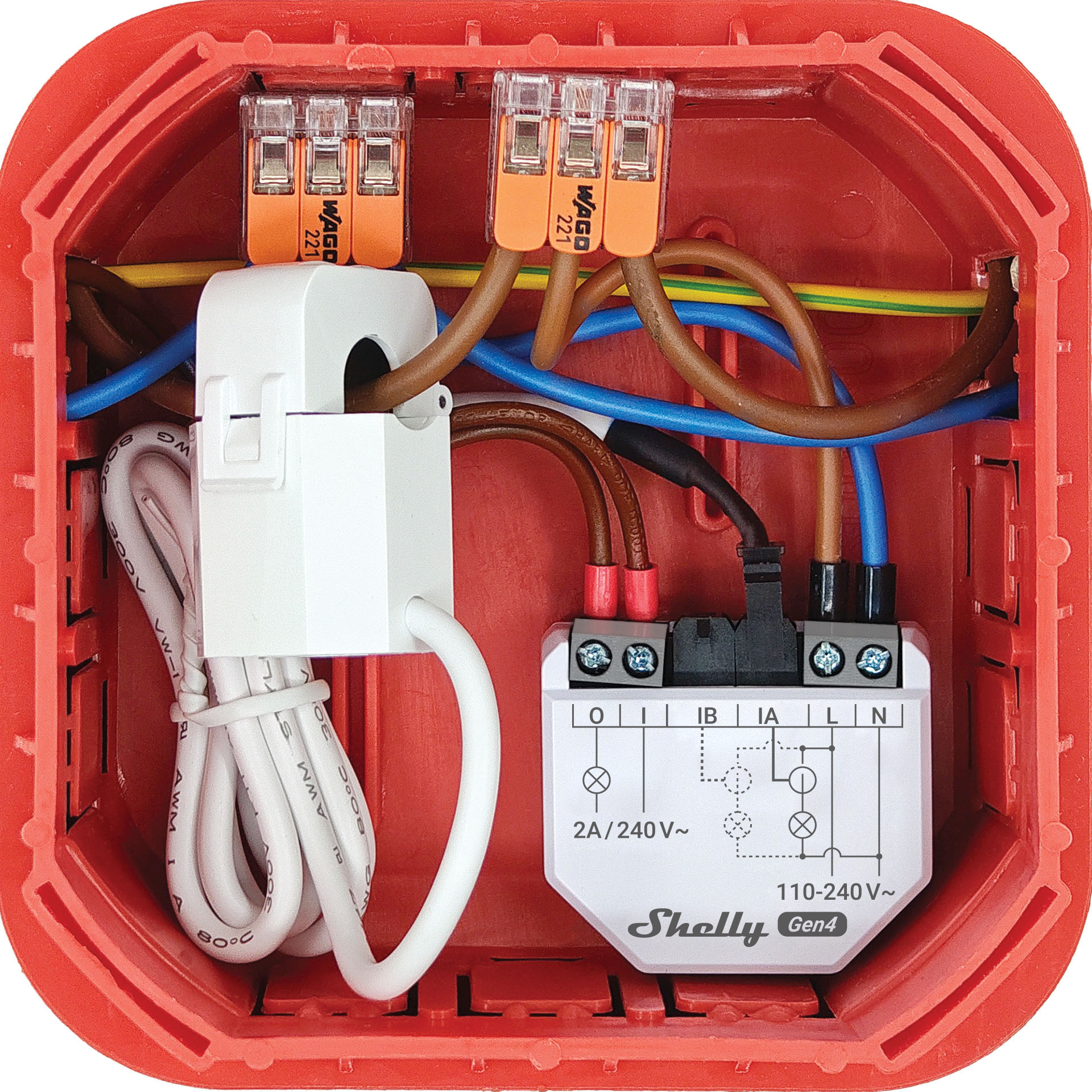

Mounting:

Wall console

Shell material:

Plastic

Shell color:

White

Connectors color:

Grey (Mouse Grey RAL7005, R(106) G(110) B(106), HEX #6A6E6A, LRV 15.19.)

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply voltage AC:

110 - 240 V, 50/60 Hz

Power supply voltage DC:

NA

Power Consumption

< 1 W

External protection:

2 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3

Output circuits ratings

Max. switching voltage AC:

240 V

Max. switching voltage DC:

NA

Max. switching current:

2 A

Sensors, meters

Internal-temperature sensor:

Yes

Voltmeter (AC):

110 - 240 V

Voltmeter accuracy:

±2 %

Ammeter (AC):

0 - 120 A

Ammeter accuracy:

±2 % (2 - 50 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)

Compatible current transformers:

  • CT 50A (included in the package)

  • CT 80A

  • CT 120A

Power and energy meters:

  • Active and apparent power

  • Active and apparent energy/p>

  • Power factor

No load threshold:

30 VA per phase

Measurement data storage:

At least 30 days of 1 min data resolution

Data export:

CSV for PQ recorded values JSON format export through RPC

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5 (LE)

RF band:

2402 - 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

ZigBee

Protocol:

802.15.4

Zigbee repeater:

Yes

RF bands:

2400 to 2483.5 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU:

ESP32C6

Flash:

16 MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook…

Scripting:

Yes

MQTT:

Yes
