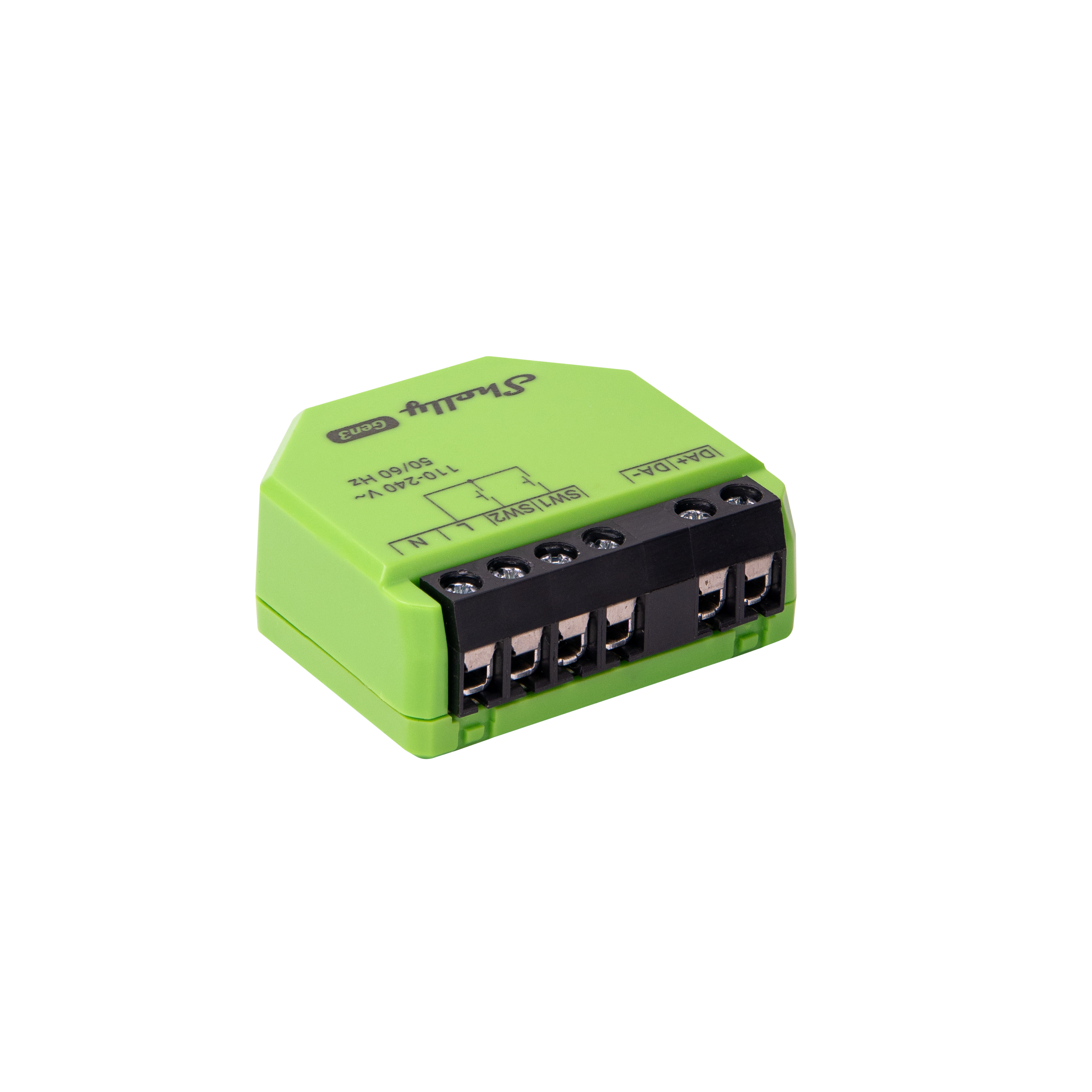

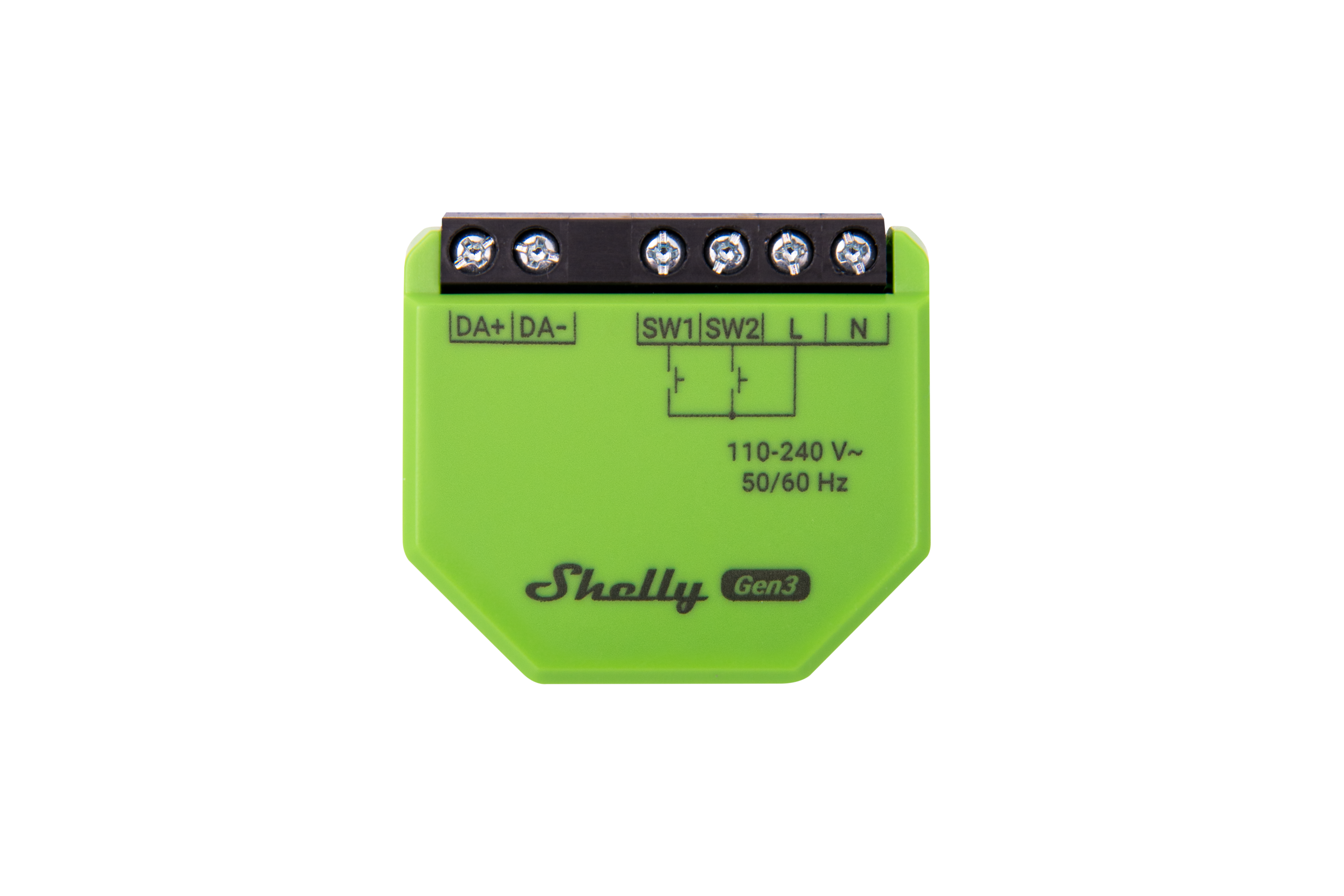

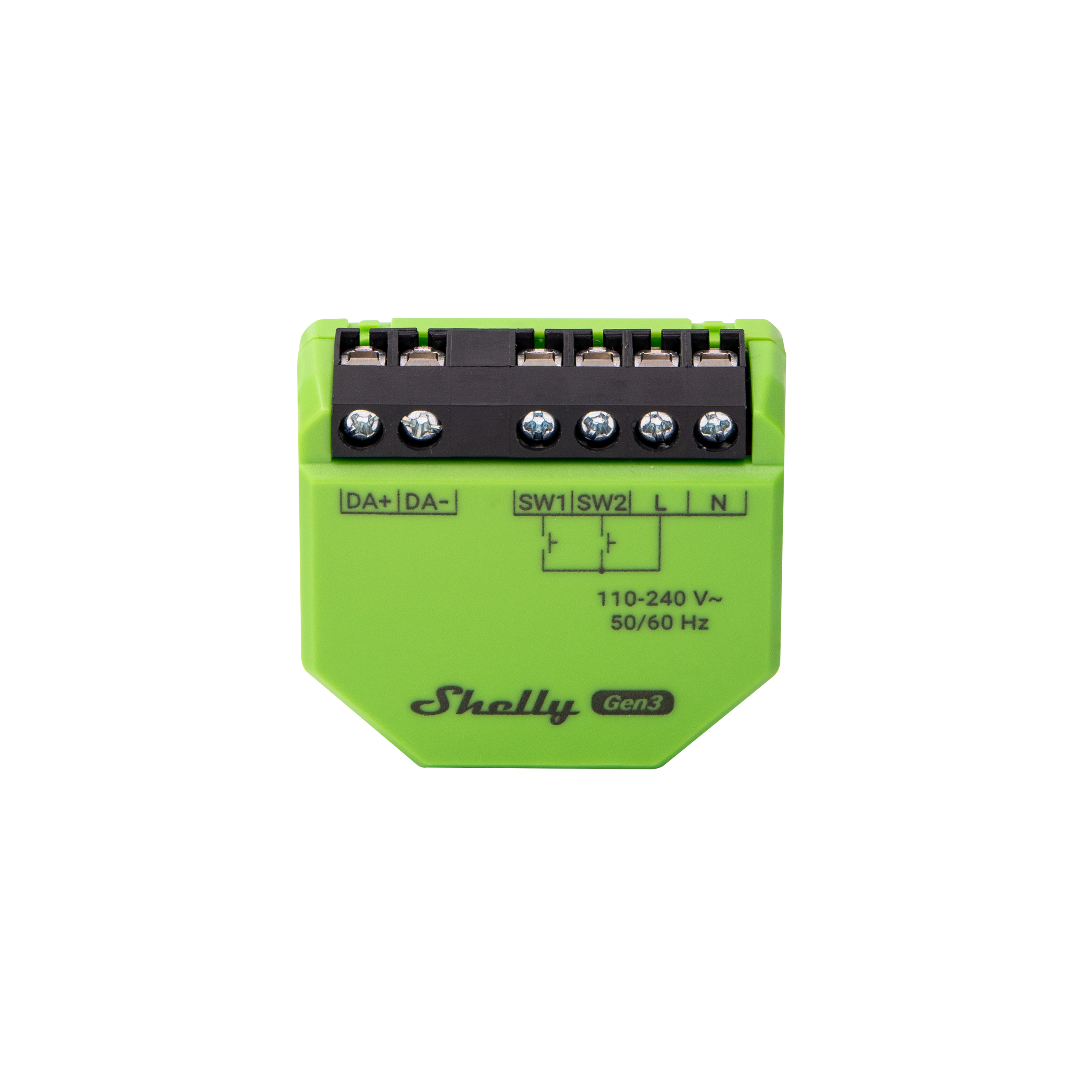

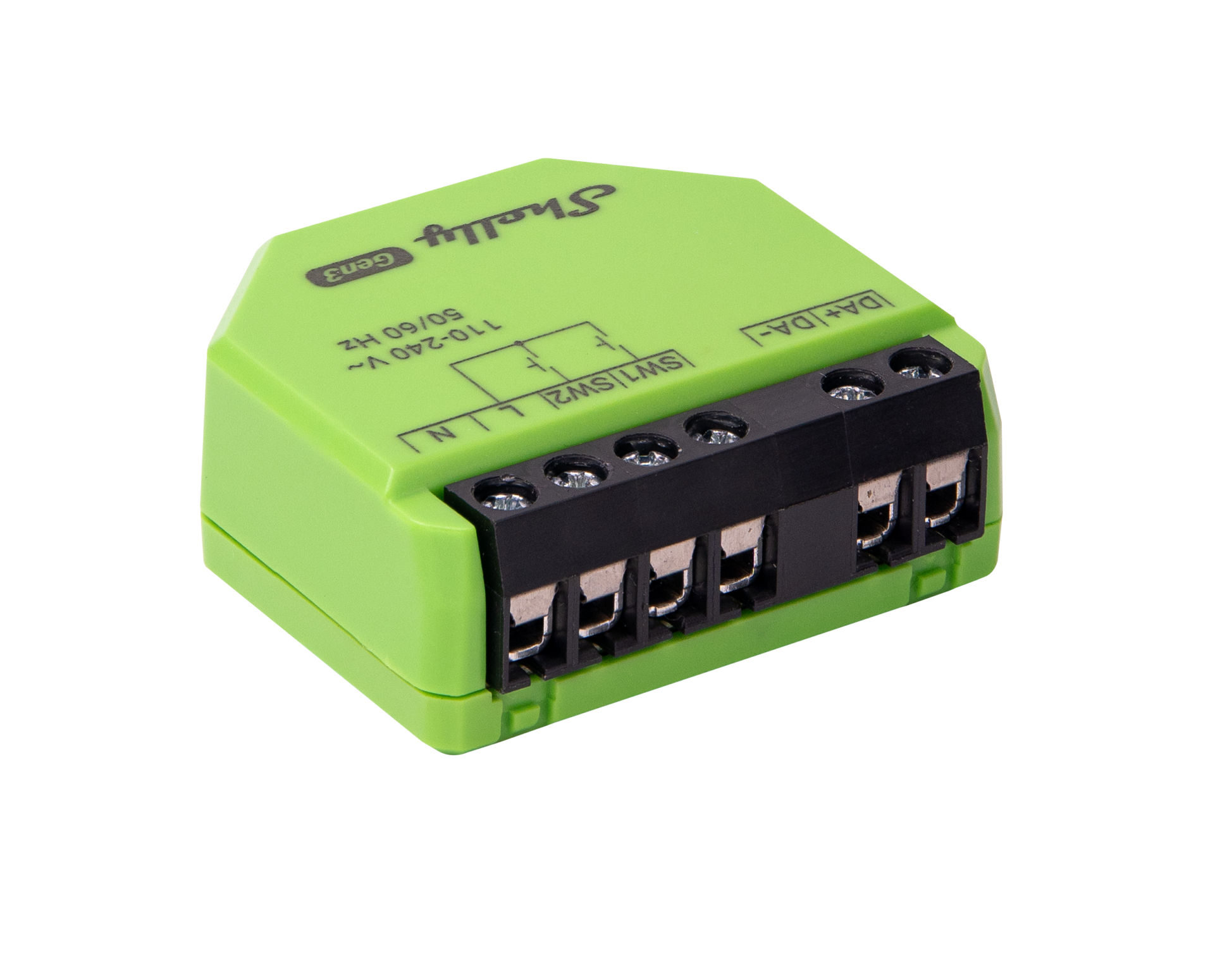

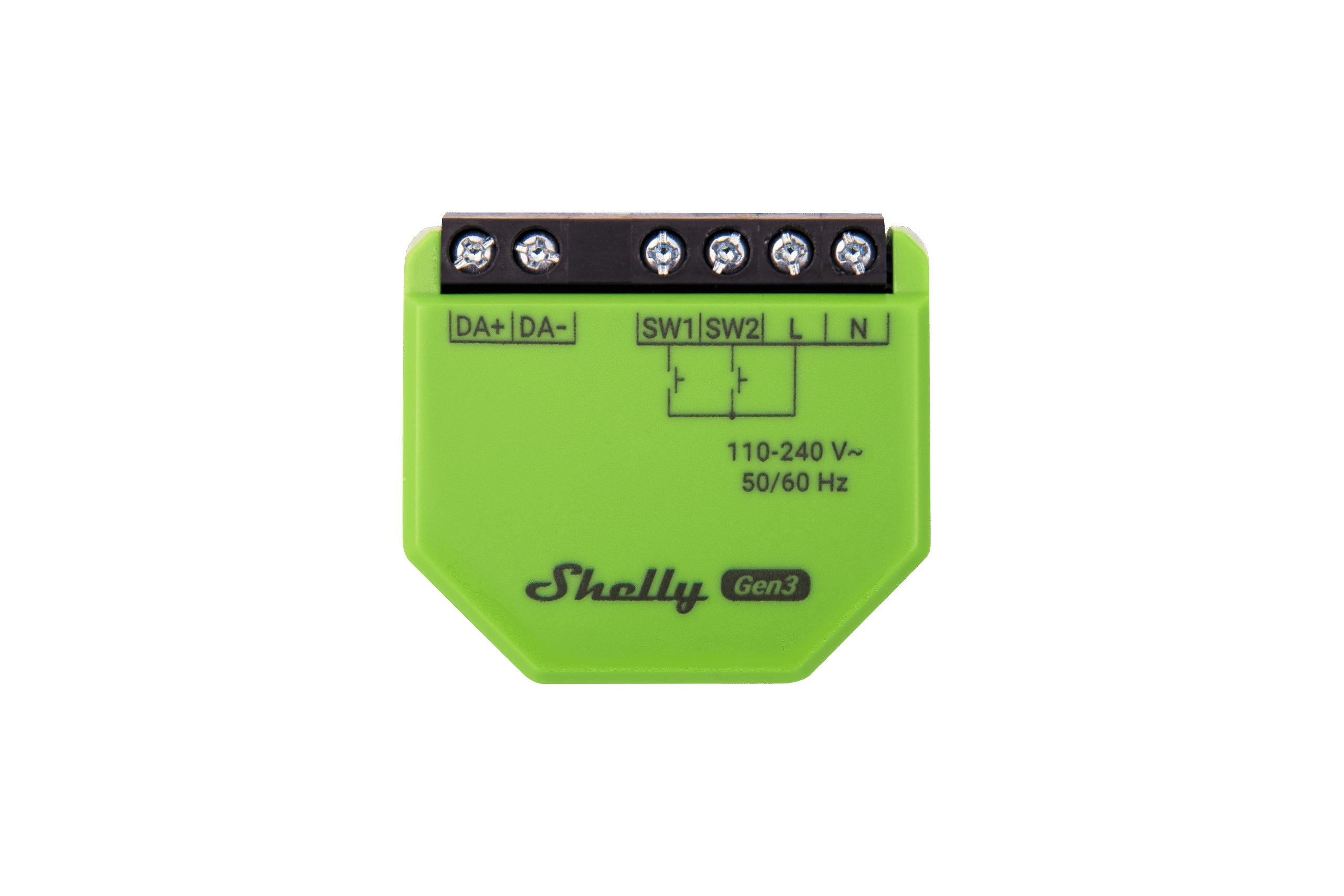

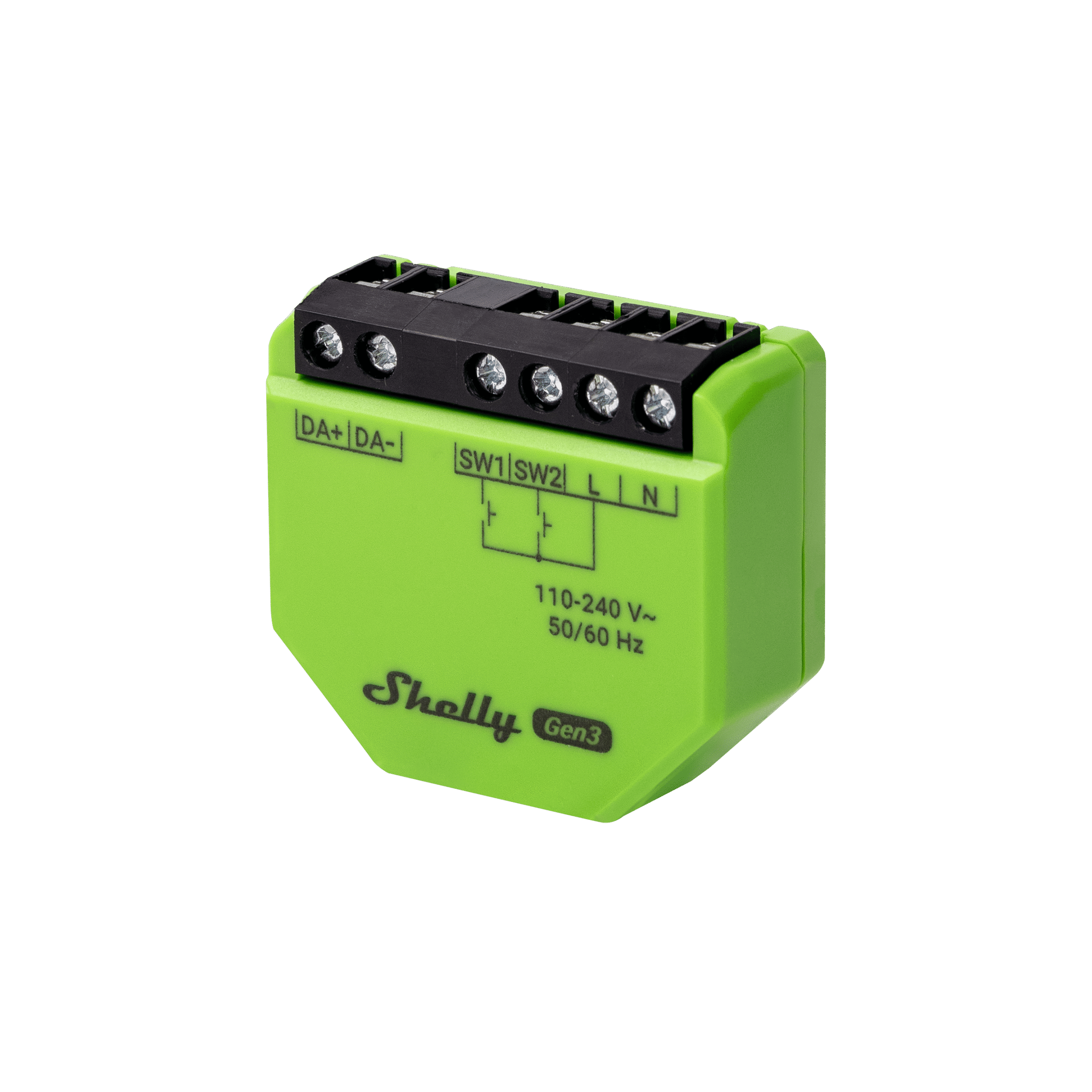

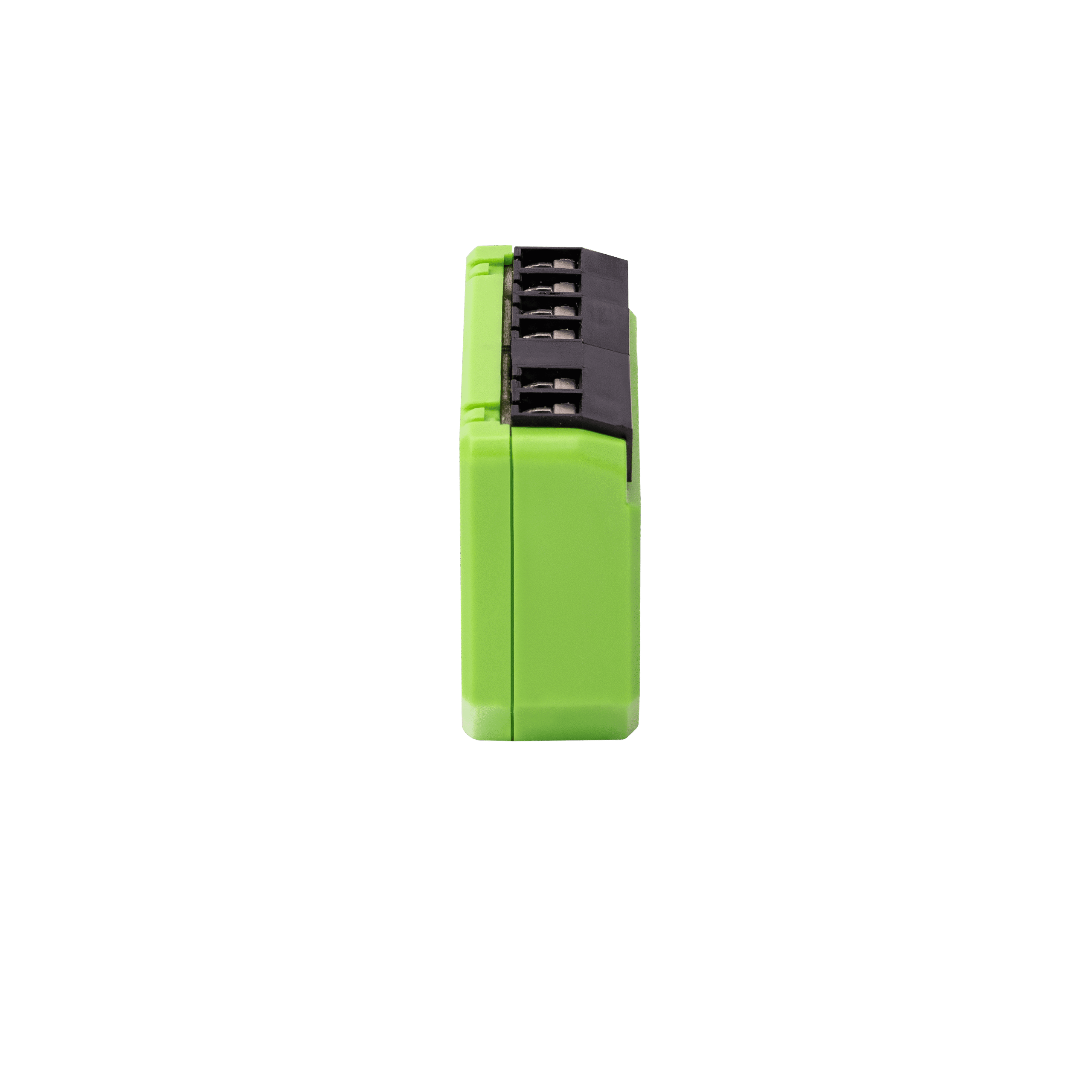

Shelly DALI Dimmer Gen3

What is THE Shelly Dali Dimmer Gen3?

Elevate your lighting control with Shelly DALI Dimmer Gen3 – your ultimate device for brightness control of a DALI network of lights.

Wi-Fi and Bluetooth connectivity (BLE gateway and Wi-Fi range extender)
DALI single master application controller
Supports LED control gear (DALI Part 207 gear)
Bus power supply guaranteed 10mA (up to 5 DALI control gear units)
Smart schedules
Night mode: Enables to set a specific brightness of lights during night time
Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control
Button fade rate: Controls how quickly the brightness changes while holding the button(s)
Transition duration: Controls the time for dimming from 0 to 100%
Supports scripting, webhooks, MQTT and local actions
Supports KNXnet / IP communication
No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants

Features

Control of DALI Part 207 gear

Shelly DALI Dimmer Gen3 is designed to provide brightness control of DALI lights. Whether for your home or your office space, Shelly smart solutions allow for cost effective and highly flexible deployments of sensors and actuators.

Integrated bus power supply

The integrated bus power supply allows control of up to 5 downstream lights without the use of additional DALI power supply module. When additional sensor or wall switches need to be deployed the Shelly product line offers wired and wireless sensor for easy integration or retrofit solutions.

KNX Support

Shelly DALI Dimmer Gen3 integrates into KNX systems, offering a powerful and cost-effective solution for expanding your existing setup. By enabling wireless extension, it eliminates the need for wiring, reducing both installation time and costs. Whether you’re upgrading a current system or adding new capabilities, it provides a flexible and efficient way to enhance your KNX network.

Remote Control

Enjoy the flexibility of remote control and monitoring of your smart home, office space or store. Your cloud connected Shelly devices can be integrated into the Shelly Smart Home application. Control individual rooms, create smart scenes, share your devices with your family members.

Use Cases

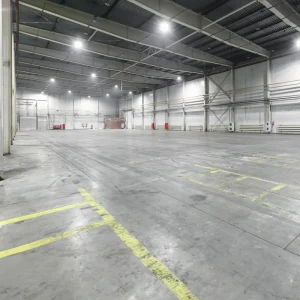

Optimizing Commercial and Specialized Spaces

Shelly DALI Dimmer Gen3, integrated into a DALI network of lights, excels in environments where flexibility and precision are key. In open-space commercial settings, this advanced system allows for dynamic lighting adjustments to meet constantly evolving needs and requirements. Beyond open spaces, the Shelly DALI Dimmer Gen3 enhances the effectiveness of DALI systems in specialized environments like conference halls, retail spaces, hospital operating rooms, and more. With this dimmer, you can create the perfect lighting setup to make any space more functional and comfortable.

Ideal for Retrofit and New-Build Installations

The DALI network of lights, enhanced with Shelly DALI Dimmer Gen3, offers exceptional flexibility for both retrofit and new-build installations. In a new build, a DALI ecosystem eliminates the need for traditional lighting control circuits, streamlining the wiring process and enhancing overall efficiency. Retrofitting a DALI system into an existing setup is also possible and provides advanced lighting control, but it does not allow for the full benefits of DALI’s more efficient and simplified wiring system, as existing control circuits are already established.

Cost-efficient

Shelly DALI Dimmer Gen3, paired with DALI luminaries, offers a powerful combination of cost-efficiency and flexibility, making it a smart investment for a wide range of applications. Whether you’re upgrading existing systems or planning a new installation, DALI delivers exceptional value by providing precise lighting control that meets diverse needs while optimizing operational costs.

Gen3 Series Features

On the Road to Matter

Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations.
*Dependent on the extent of Matter’s functionalities support.

More Memory, More Power

The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency. This significant increase in memory not only guarantees smoother and faster operation but also equips the Gen3 series for the introduction of new capabilities.

Unified Control with Virtual Components

The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system. This feature provides streamlined control of all your smart devices, regardless of brand, from a single interface.

Caution

Installation of certain Shelly devices must be done by a qualified electrician or authorised installer.

Diagrams

Specifications

Physical
Size (HxWxD):	42x37x17 mm / 1.65x1.46x0.66 in
Weight:	18 g / 0.63 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 1.5 mm² / 20 to 16 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	5 to 6 mm / 0.20 to 0.24 in
Mounting:	In-wall, suspended ceilings
Shell material:	Plastic
Shell color:	Green
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 VAC ±10% 50/60Hz
Power consumption:	< 2 W
Neutral not needed:	No
Output circuits ratings
Bus power supply	Guaranteed 10mA (up to 5 DALI control gear units), Short circuit current < 35 mA
Bus voltage	16V nominal
Sensors, meters
Internal-temperature sensor:	Yes
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2401 - 2483 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP32-C3 Shelly
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook…
Scripting:	Yes
