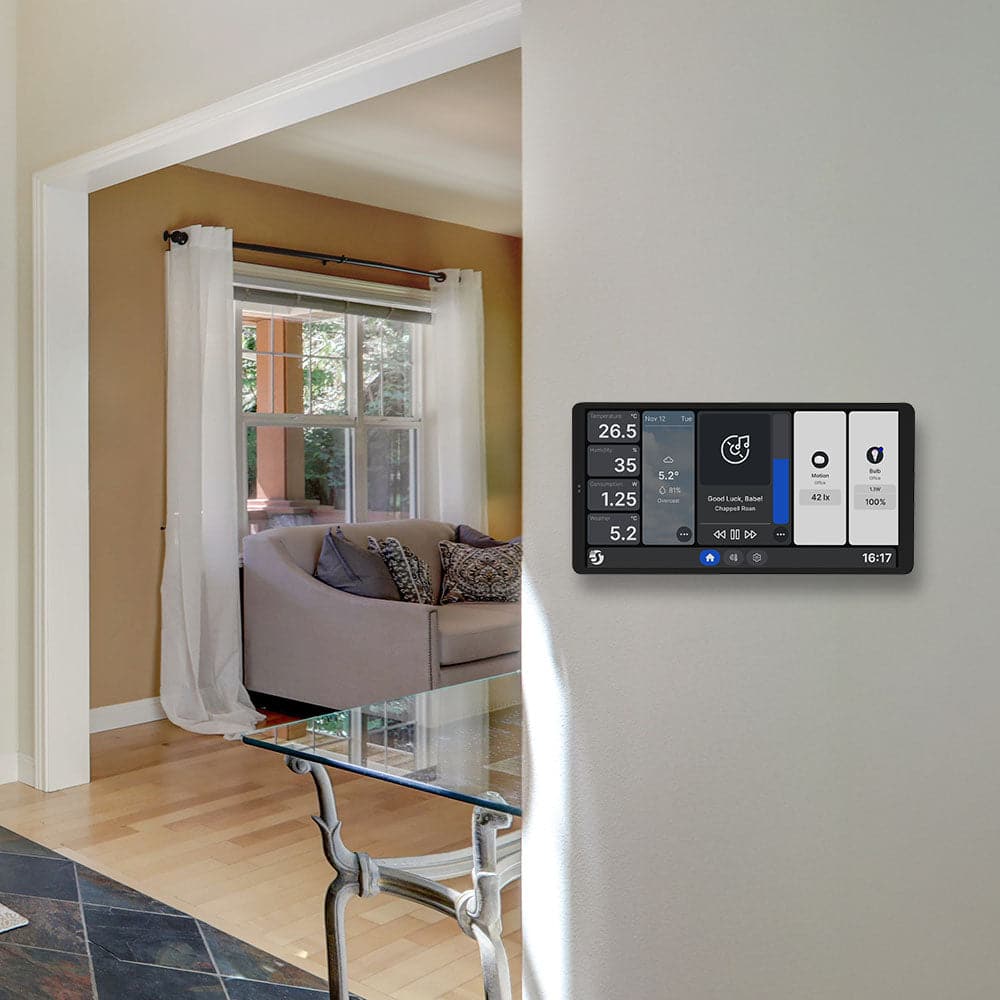

Shelly Wall Display X2i
What is Shelly Wall Display X2i?

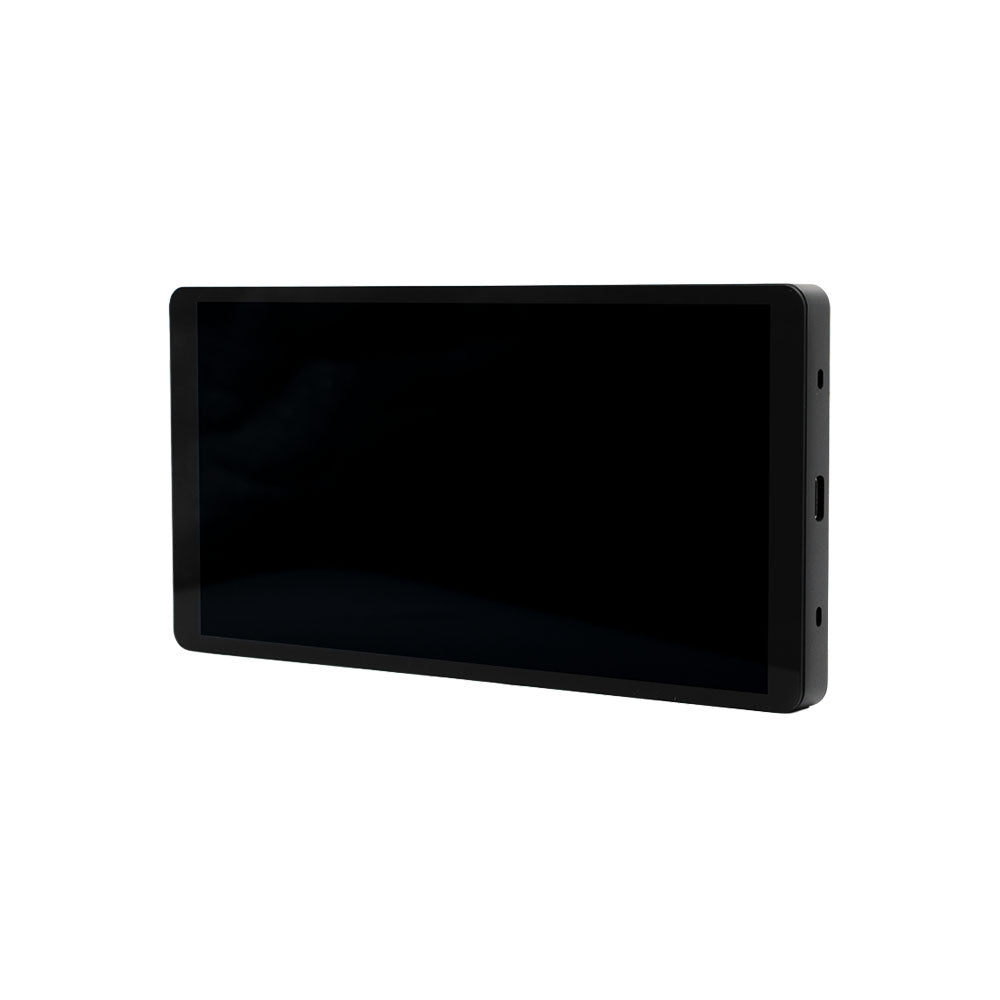

Smart home control panel with a 6.95” color touchscreen, ultra-fast quad-core processor, and an interchangeable power base.
The included power base has a single output for one-circuit control.
- Touch-sensitive 6.95” color display (panoramic or portrait view)
- Bluetooth 5.0 and Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) connectivity
- Ultra-fast quad-core CPU for instant response
- Interchangeable power base
- Power monitoring for connected Shelly PM devices
- Integrated 5 A relay for light control
- Integrated 0.8 W speaker
- Bluetooth and SONOS speakers support
- Built-in LUX sensor, proximity sensor, and G-sensor (for gestures)
- Supports both 100–240 V~ and USB-C (5 V⎓) power for flexible installation
- Simple navigation and customizable home screen
- Compatible with Shelly Smart Control App, and Home Assistant
- Available in Black & Silver
Features
Advanced Connectivity
Pair devices using Wi-Fi 6 Dual Band (2.4 GHz & 5 GHz) and Bluetooth 5.0 for faster setup, stable communication, and greater control reliability
Powerful Quad-Core Performance
Rely on the quad-core processor for quick reactions when switching lights, changing settings, or managing your smart routines
Touchless Interaction
Wave to wake the screen using gesture and proximity sensors, while the LUX sensor adapts to ambient light
Built-In Relay and Dual Power Options
Choose how you power the device – via 100–240 V~ interchangebale power base or USB-C, and use the built-in relay to directly control lights
Open Smart Ecosystem
Manage your system locally through MQTT, webhooks, or Wi-Fi. Keep full access and privacy without relying on the cloud
Flexible Display Orientation
Rotate the screen between panoramic and portrait mode to match your setup and personalize how you control your home
Use Cases
Integrate with Shelly Smart Control App or Home Assistant
Streamline your smart home experience by connecting the Shelly Wall Display X2i with Home Assistant or the Shelly Smart Control App.
Manage and automate all your Shelly and compatible devices from one customizable interface. With integration across platforms, you can control appliances, lights, or sensors, create personalized automation scenes and schedules for a real smart home experience.

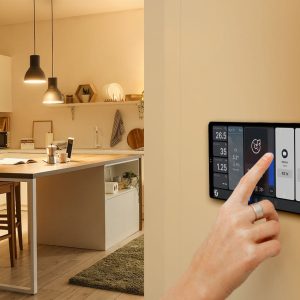

Make Your Devices Work for You
Remotely control and automate various electric appliances such as lights, fans, or other connected devices.
Thanks to the integrated LUX measurement sensor, the Wall Display X2i can trigger other devices automatically, turning lights on or off based on brightness levels to ensure optimal comfort and energy efficiency.

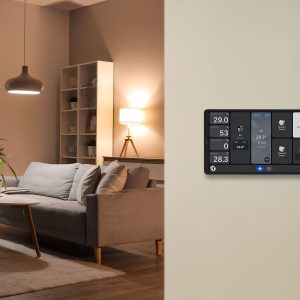

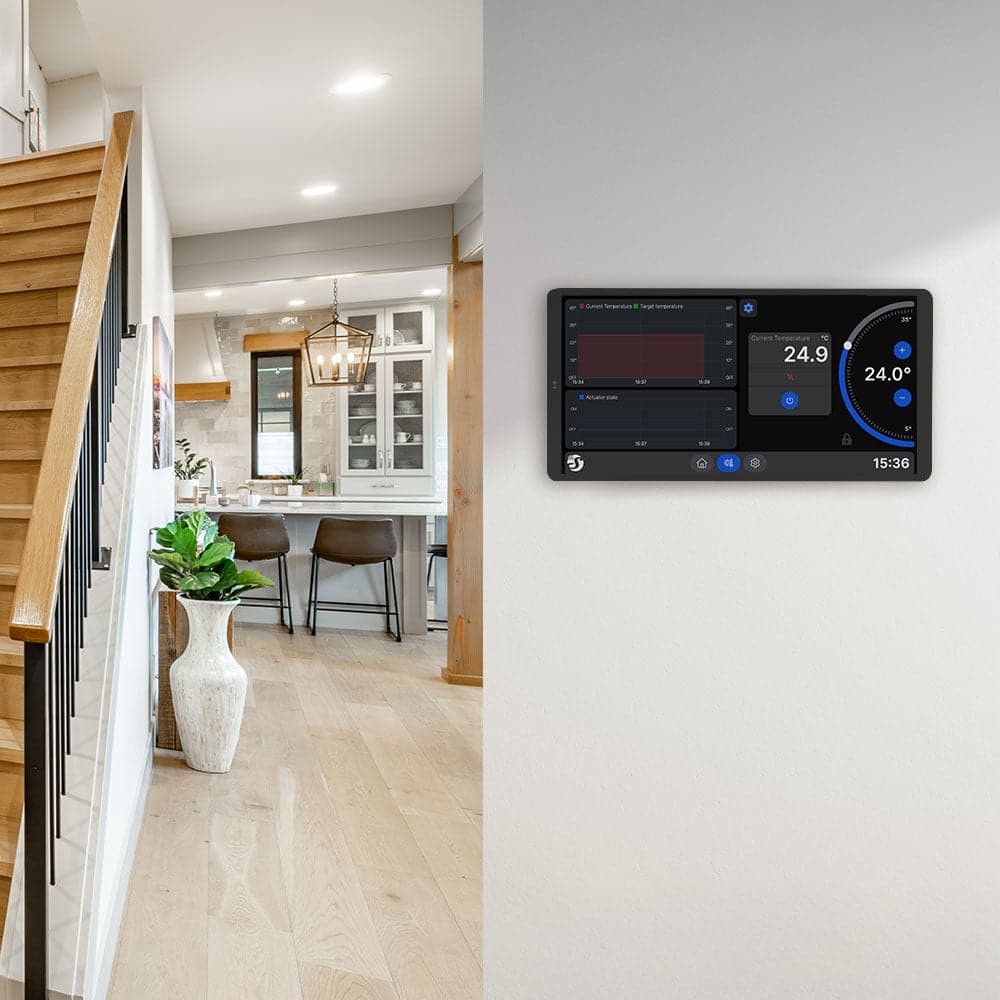

Let Your Home Handle the Climate
Adjust your heating, ventilation, and air conditioning systems based on real-time temperature and humidity data from connected sensors (like Shelly BLU H&T).
The Wall Display X2i can act as a thermostat interface, giving you intuitive control over your indoor climate.
Working in harmony with other Shelly devices, it dynamically fine-tunes your environment to maintain the perfect comfort level in every room.
Know Where Your Power Goes
Monitor the power consumption of appliances connected to your Shelly PM devices directly through your Shelly Smart Control account.
This functionality helps you track usage patterns, manage costs, and make your home more energy-efficient.

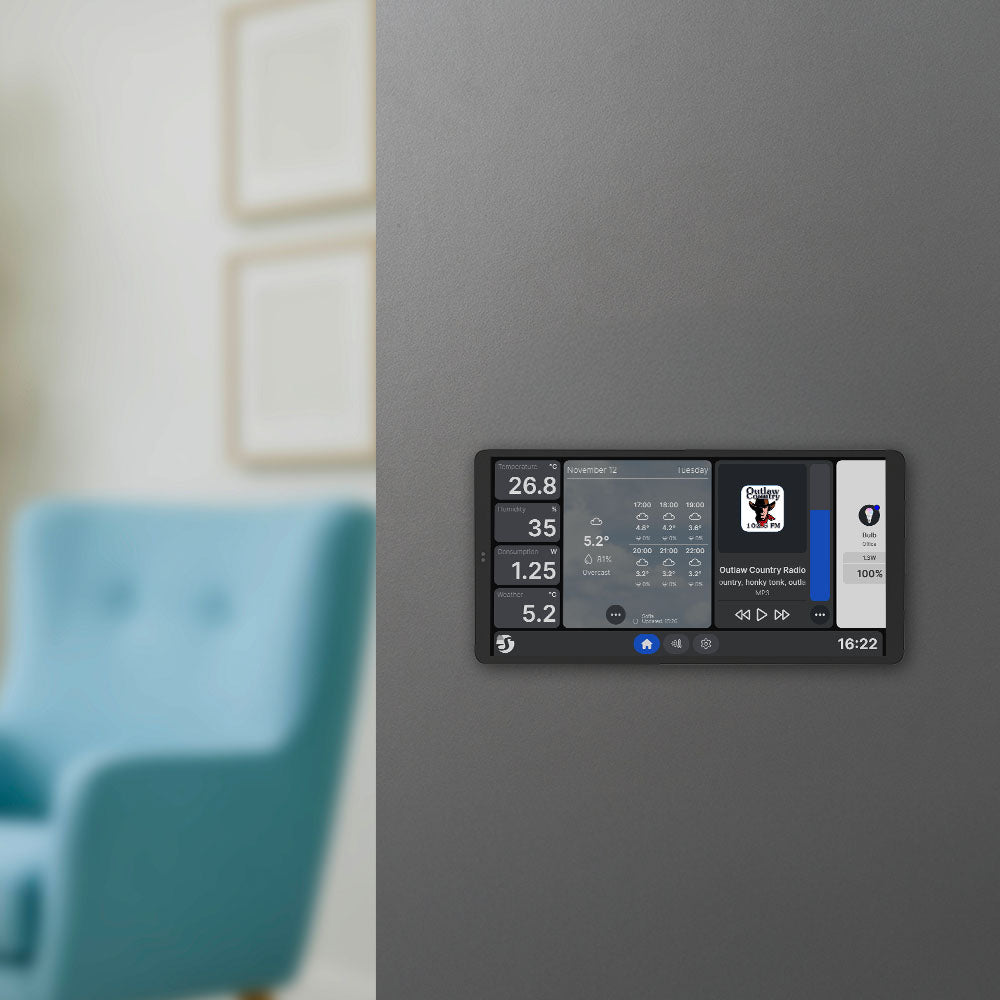

When Your Home Plays the Music
Connect your Bluetooth or Sonos speakers to the Shelly Wall Display X2i for enhanced audio control.
Stream music, alarms, notifications, or any other audio signal directly through your home system for improved sound coverage and convenience.

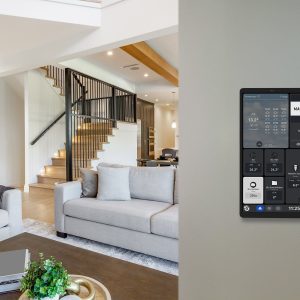

Control Everything from One Hub
Manage your entire smart home from a single touchpoint.

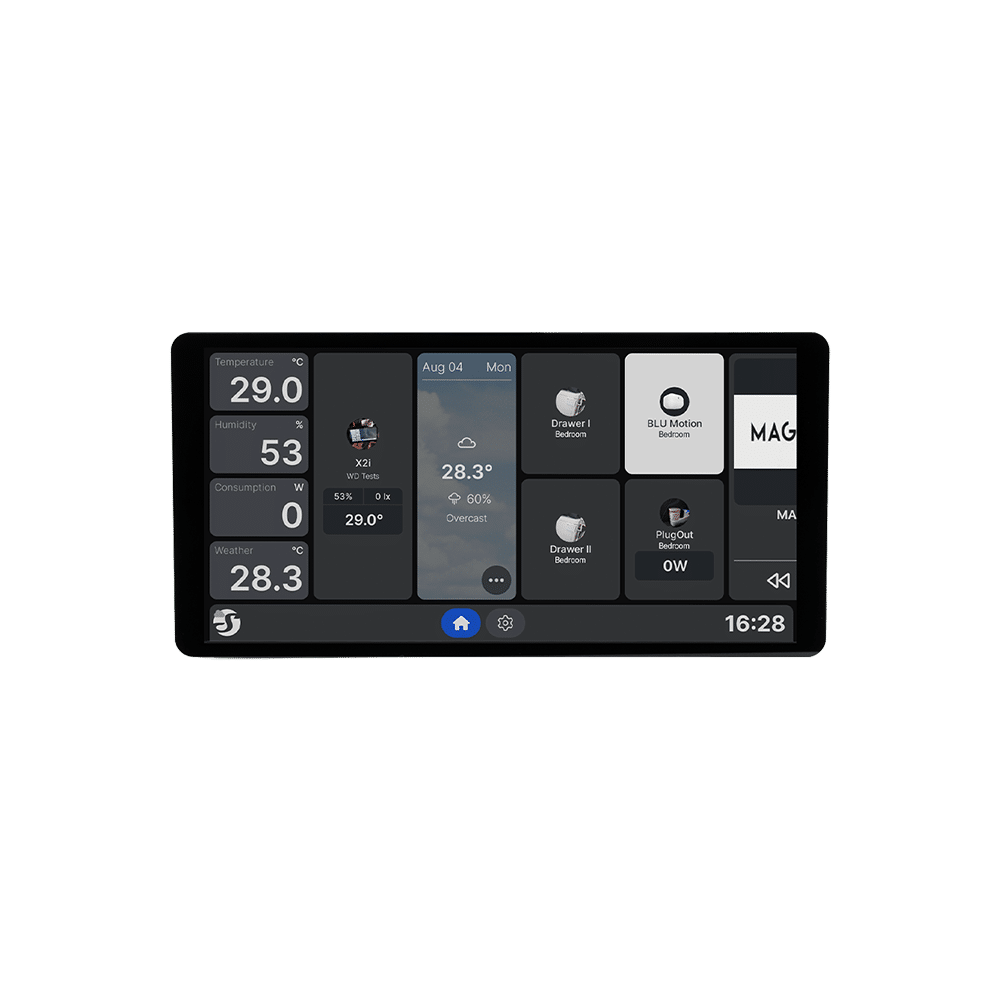

The customizable home screen of the Shelly Wall Display X2i brings together lighting, energy, climate, and automation controls – everything you need, right at your fingertips.
Caution
Installation of certain Shelly devices must be done by a qualified electrician or authorised installer.
Diagrams
Specifications
Physical | |
Size (HxWxD): |
With power base: 87x178x36 mm / 3.43x7x1.42 inch Without power base: 87x178x11 / 3.43x7x0.43 inch |
Weight: |
With power base: 292 g / 10.3 oz Without power base: 246 g / 8.68 oz |
Touch Screen: |
5-point capacitive |
Screen resolution, px: |
1440x720p |
Screw terminals max torque: |
0.4 Nm / 3.5 lbin |
Conductor cross section: |
0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 inch |
Mounting: |
Wall box |
Shell material: |
Plastic, aluminum, glass |
Shell color: |
Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
Speaker: |
0.8W*1 |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
100-240 V~, 50/60Hz |
Power consumption: |
< 5 W |
USB TYPE-C power supply: |
5 V⎓, 1 A |
Output circuits ratings | |
Max. switching voltage: |
240 ~ |
Max. switching current: |
5 A |
USB TYPE-C, voltage: |
5 V⎓ |
USB TYPE-C, current: |
0.5 A |
Sensors, meters | |
Light sensor: |
Yes |
Microphone: |
Yes |
G-sensor: |
Yes |
Proximity sensor: |
Yes |
Radio | |
Wi-Fi | |
Protocol: |
Wi-Fi 6 Dual Band |
RF band: |
2.4 GHz, 5 GHz |
Max. RF power: |
< 20 dBm |
Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth - | |
Protocol: |
5.0 |
RF band: |
2402 - 2480 MHz |
Max. RF power: |
< 4 dBm |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
RAM: |
2 GB |
Flash: |
8 GB |
System: |
Android 11 |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 2 URLs per hook… |
Scripting: |
No |
MQTT: |
Yes |
