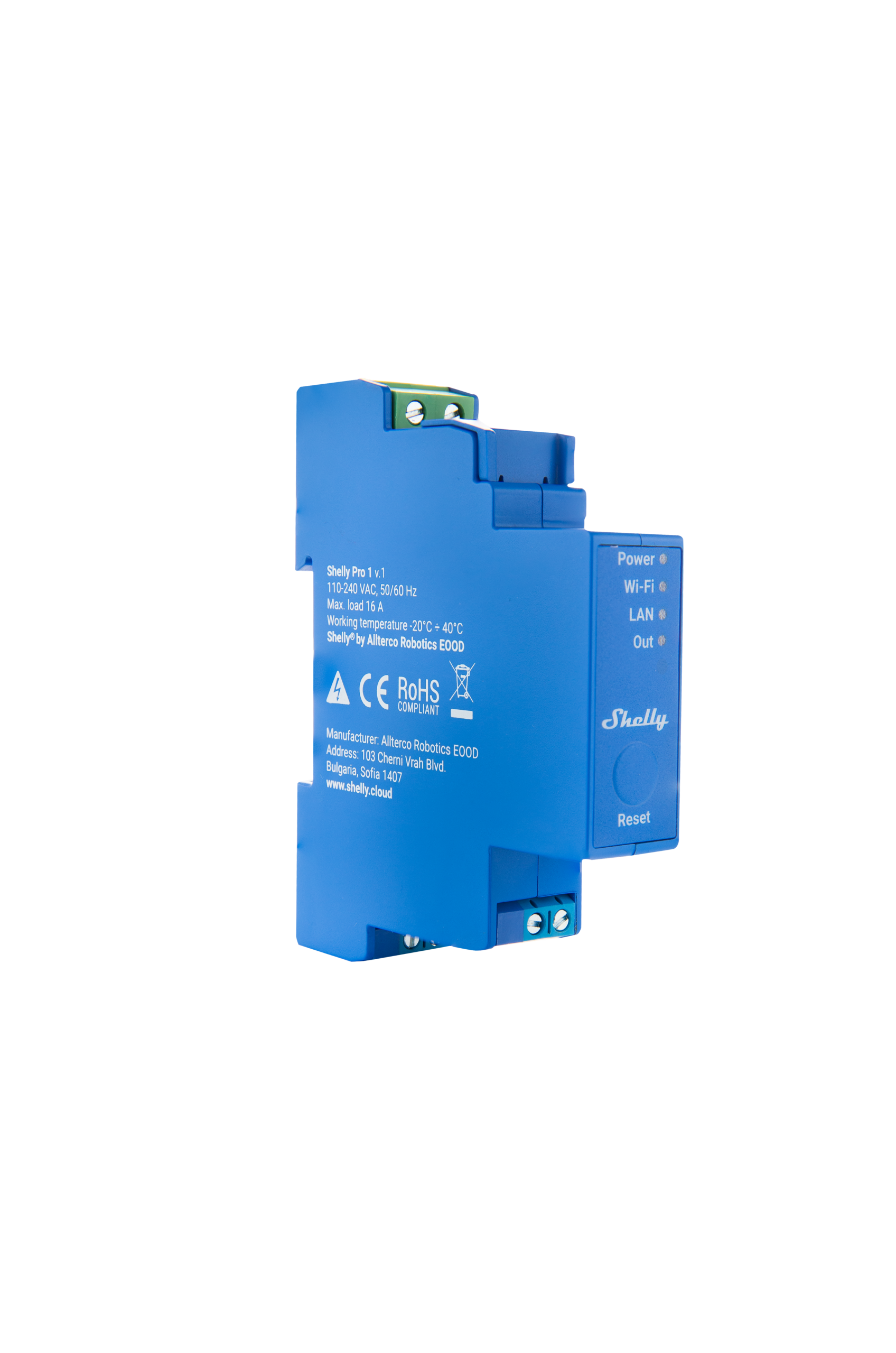

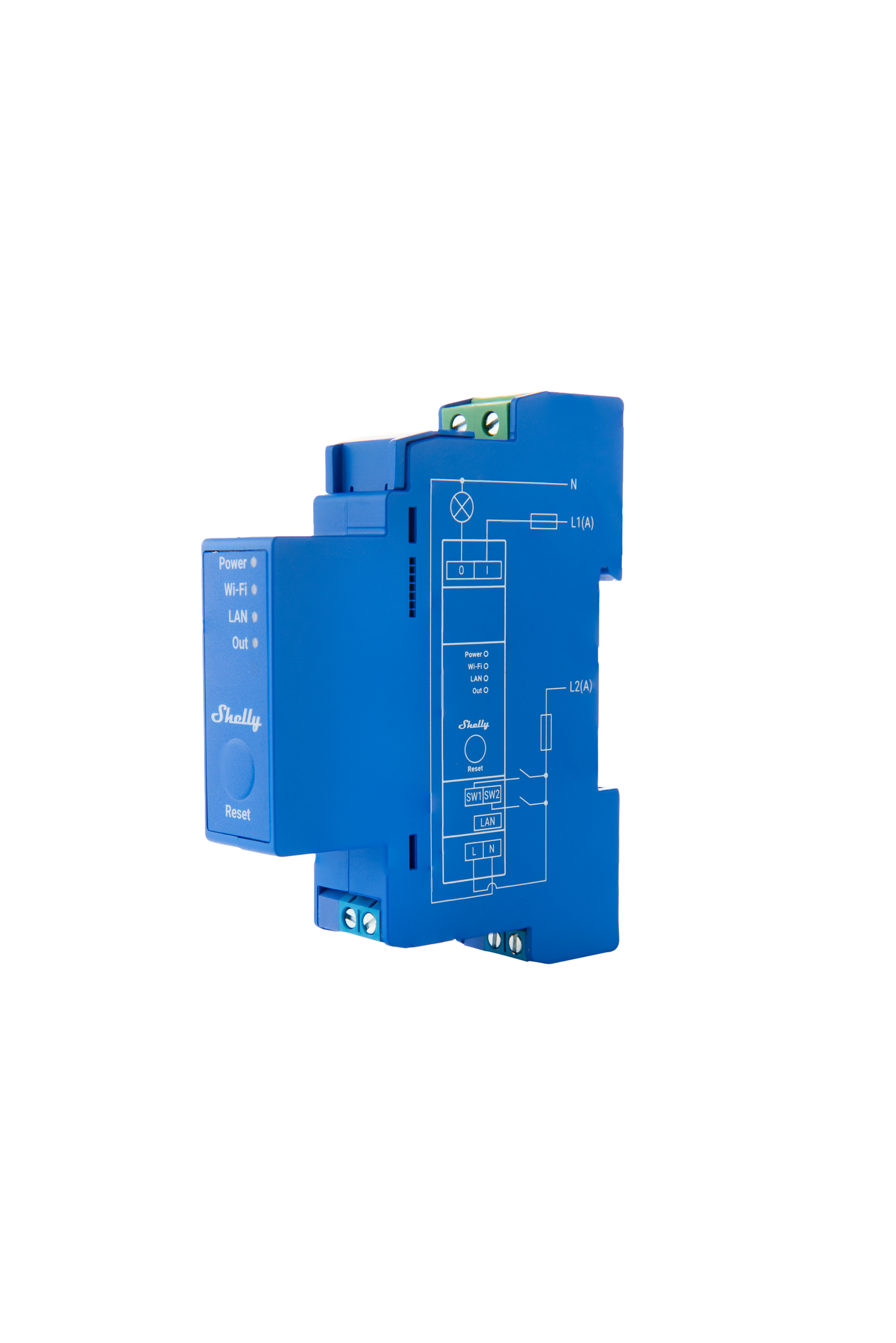

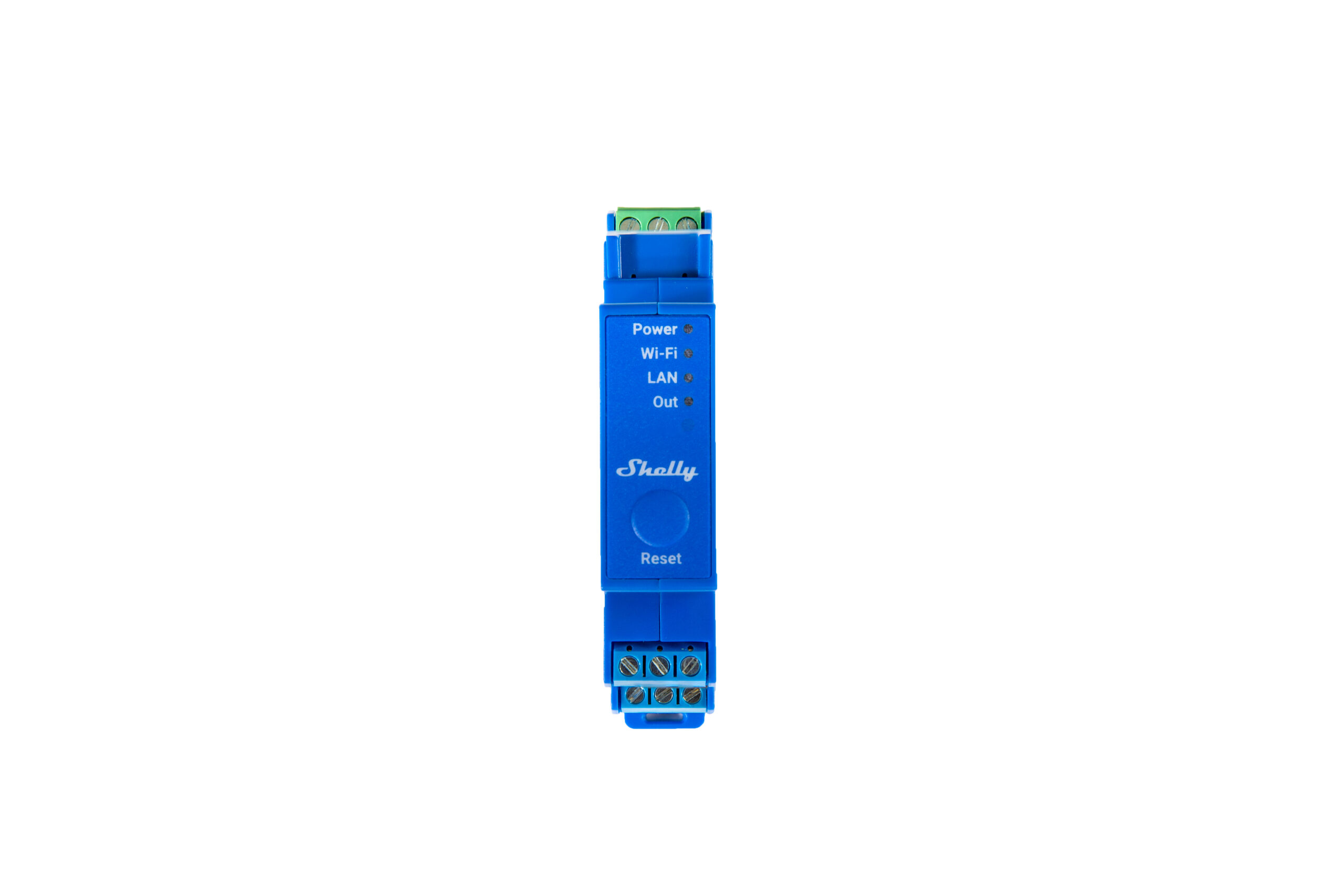

Shelly Pro 1
What is The Shelly Pro 1?
A 1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
- DIN rail mountable
- LAN, Wi-Fi, and Bluetooth connection
- 1 output, 16A
- Dry contacts
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
- Supports KNXnet / IP communication
Features
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup when needed.

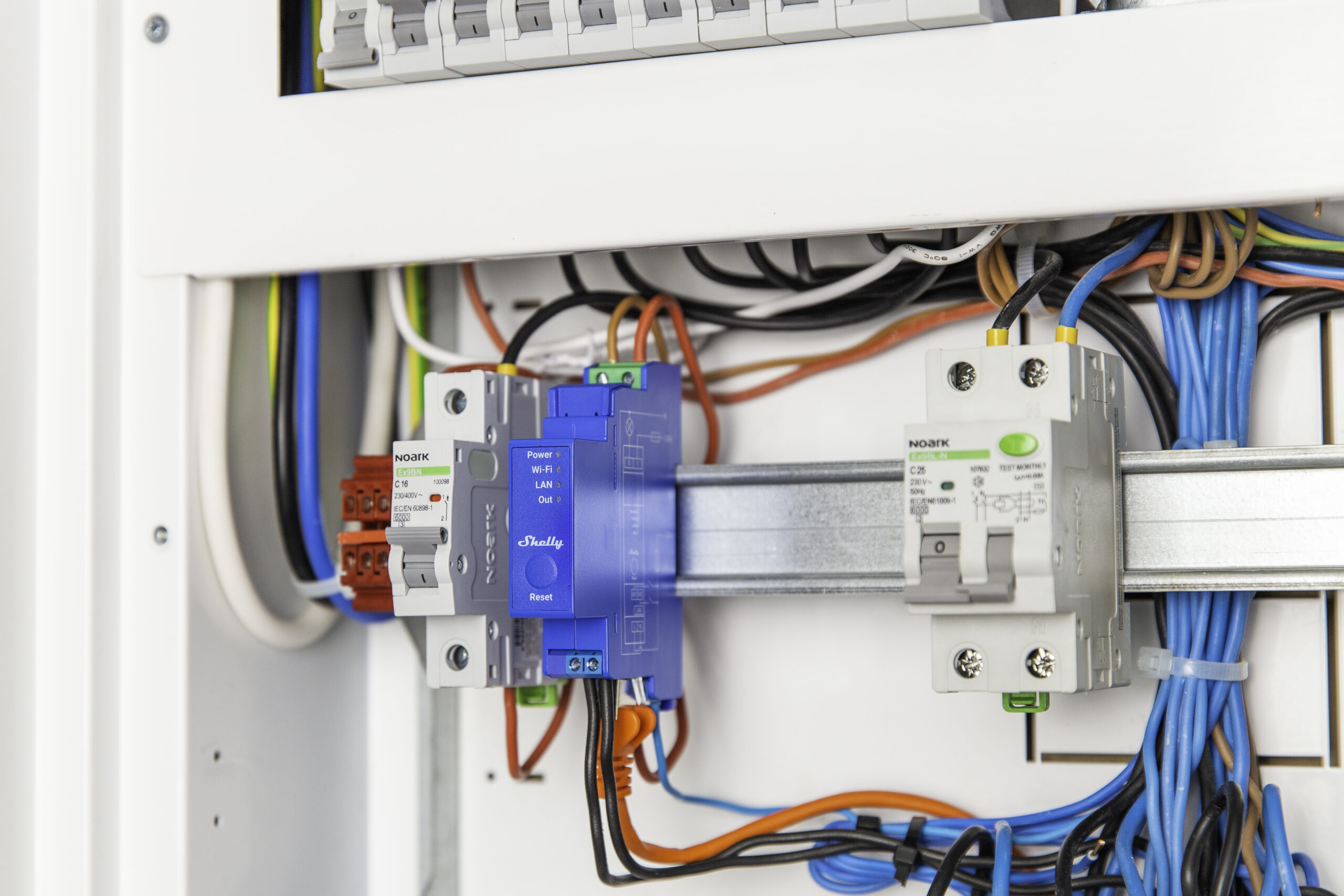

DIN-mountable
Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.
Dry Contacts
Use a wide range of output voltage levels. Supports low voltages.
Low and High Voltage Support
Use it to control a wide range of AC devices and appliances.
SEnhanced Safety and Security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting Capabilities
Shelly Pro 1 fully supports mjS scripting, allowing you to create further features and functionalities.
Use Cases
Dynamic lights control for improved efficiency
Automate your lights and optimize their energy consumption through smart schedules, timers, and extended scripting functionalities. Shelly home automation solutions allow you to automate the lights on each floor separately and set custom schedules for each of them. Set all lights in the office to switch off when everyone has left the premises and never worry about wasting energy during non-working hours. In addition, Shelly BLU Motion ZB will ensure the most efficient use of the lights in the common spaces. The motion sensor will switch on the lights when someone enters and will switch them off once the room is empty.
Common space automation
Common spaces such as halls, garages, and storage rooms usually have their lights constantly switched on. However, that leads to inefficient usage of energy and unnecessary monthly costs. Shelly Motion2 will ensure the most efficient use of the lights in the common spaces. The motion sensor will switch on the lights when someone enters and trigger Shelly Pro 1 to switch them off once the premises are empty.
Sockets automation for efficient energy use
Make sure that no energy goes to waste by automating the sockets’ power supply with Shelly Pro 1 and use the smart scheduling function to cut off the power to all heavy-consuming electrical appliances between 7:00 PM and 7:00 AM during the weekdays and between 7:00 PM on Friday and 7:00 AM on Monday. That way, you will cut the energy consumption of these devices in half, which will result in significant optimization of the monthly energy cost.
Pro Series Features
HTTP/HTTPS webhooks for quick connection
Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.
Smart actions that follow the Sunrise/Sunset
Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.
Automation with weekly scheduling
Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.
Scripting for custom automation
Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.
Caution
Installation of certain Shelly devices must be done by a qualified electrician or authorised installer.

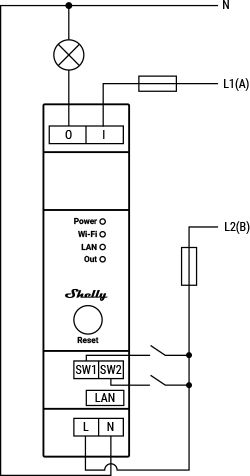

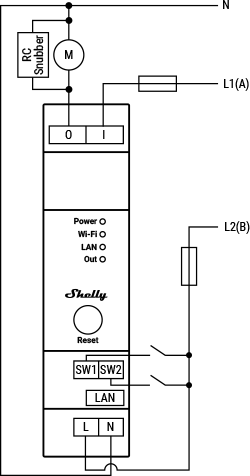

Diagrams
Terminals |
Wires |
||
|---|---|---|---|
I |
Load circuit input terminal |
L1(A) |
Load circuit live (110-240 V) wire |
O |
Load circuit output terminall |
L2(B) |
Device power supply live (110-240 V) wire |
SW1, SW2 |
Switch/button input terminals |
||
L |
Live (110-240 V) terminal |
||
N |
Neutral terminal |
|
|
LAN |
Local Area Network RJ 45 connector |
||
Specifications
Physical | |
Size (HxWxD): |
94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in |
Weight: |
63 g / 2.22 oz. |
Screw terminals max torque: |
0.4 Nm / 3.54 lbin |
Conductor cross section: |
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) |
Conductor stripped length: |
6 to 7 mm / 0.24 to 0.28 in (green connectors) |
Mounting: |
DIN rail |
Shell material: |
Plastic |
Shell color: |
Blue |
Environmental | |
Ambient working temperature: |
-20 °C to 40 °C / -5 °F to 105 °F |
Humidity: |
30 % to 70 % RH |
Max. altitude: |
2000 m / 6562 ft |
Electrical | |
Power supply: |
110 - 240 V~ |
Power consumption: |
< 3 W |
Power supply voltage DC: |
N/A |
Neutral not needed |
No |
Output circuits rasting | |
Max. switching voltage AC: |
240 V~ |
Max. switching voltage DC: |
N/A |
Max. switching current AC: |
16 A |
Max. switching current DC: |
N/A |
Sensors, meters | |
Internal-temperature sensor: |
Yes |
Radio | |
Wi-Fi | |
RF band: |
2400 - 2495 MHz |
Max. RF power: |
< 20 dBm |
Wi-Fi protocol: |
802.11 b/g/n |
Wi-Fi Range: |
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
Bluetooth | |
Protocol: |
4.2 |
Range: |
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
Microcontroller unit | |
CPU: |
ESP32-D0WDQ6 |
Flash: |
8 MB |
Firmware capabilities | |
Schedules: |
20 |
Webhooks (URL actions): |
20 with 5 URLs per hook |
Scripting: |
Yes |
MQTT: |
Yes |
CoAP: |
No |
