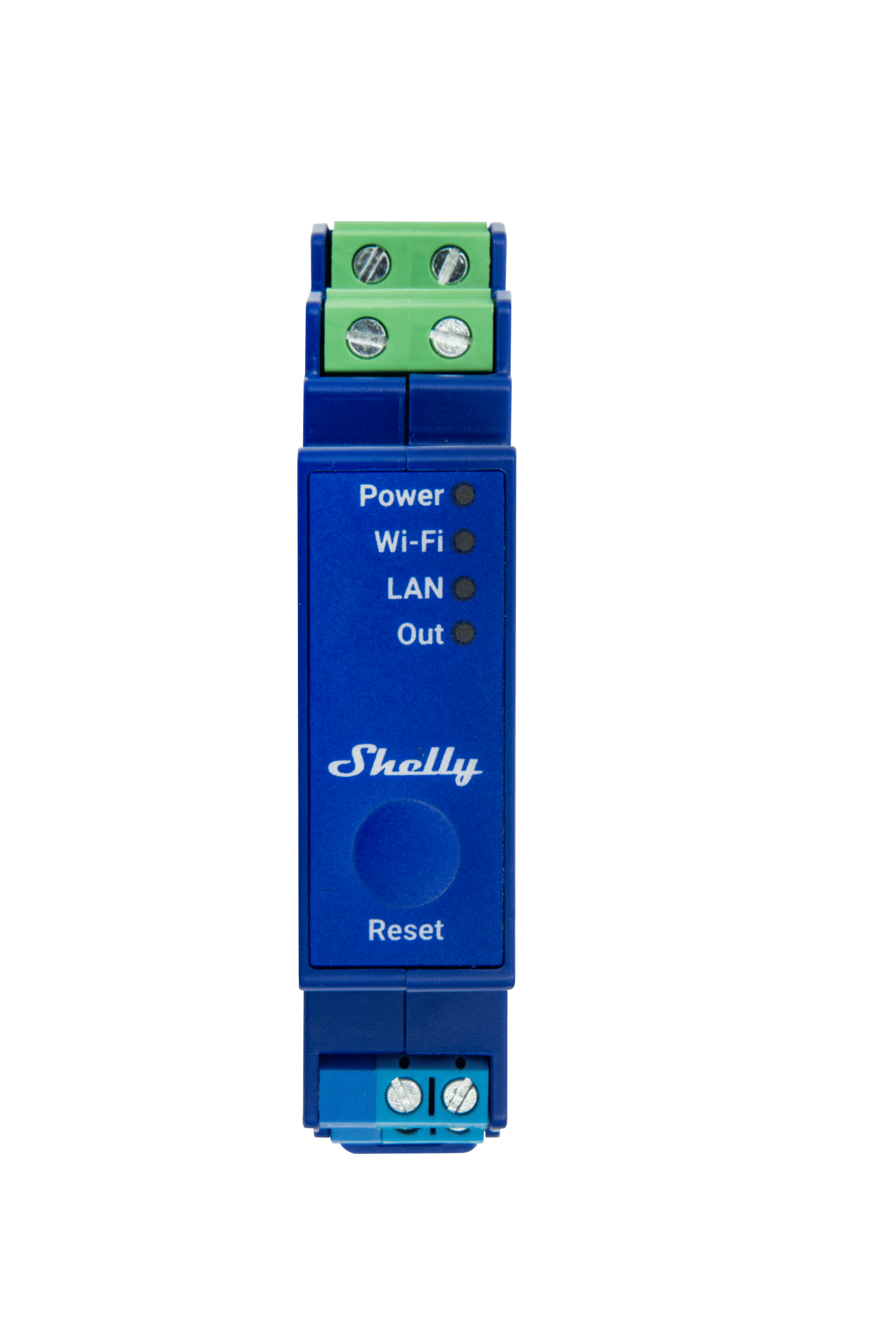

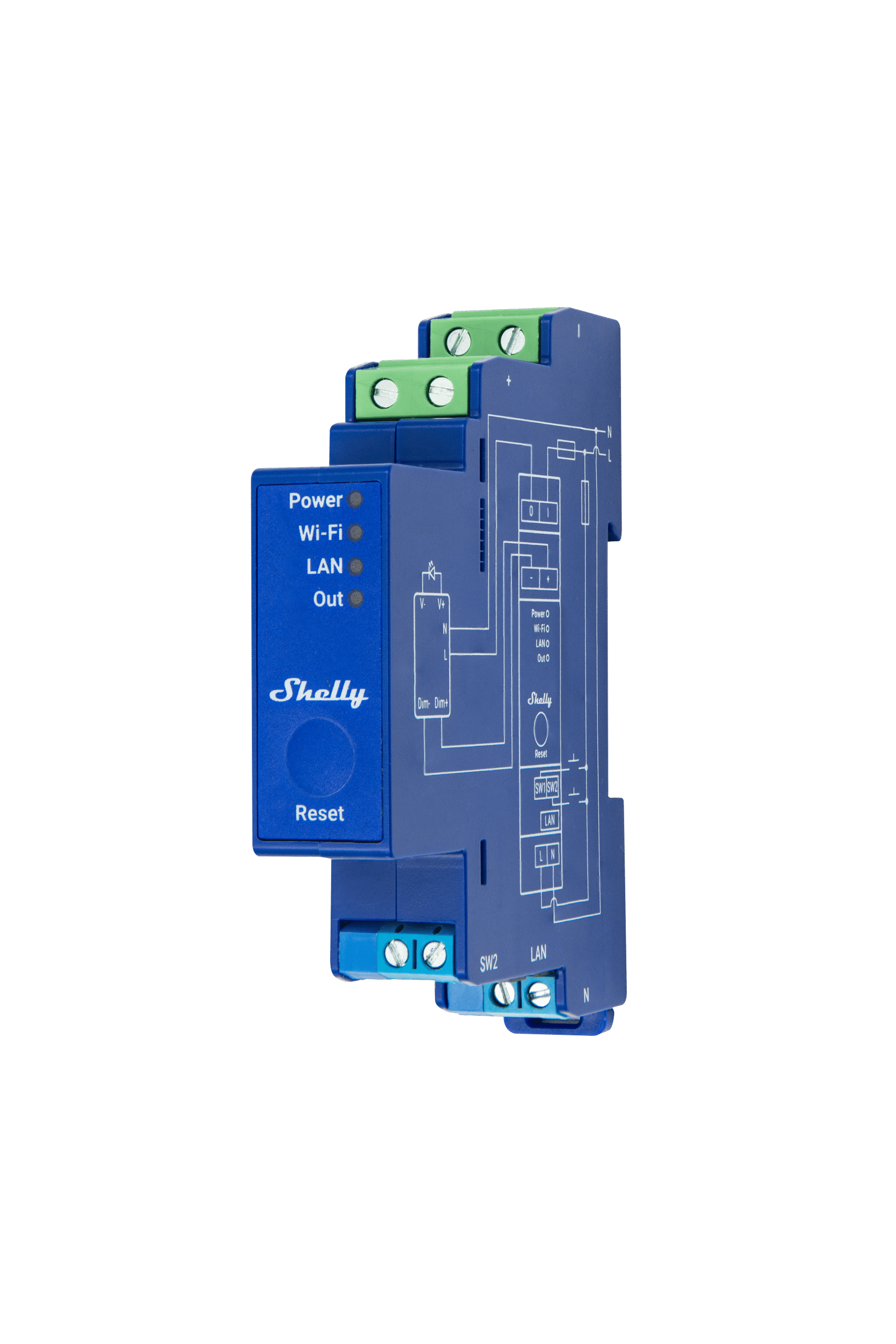

Shelly Pro Dimmer 0/1-10V PM

What is Shelly Pro Dimmer 0/1-10V PM?

Smart DIN-mountable dimming controller with power measurement, designed to manage 0/1-10V dimming drivers.

DIN rail mountable
Wi-Fi and Bluetooth-operated
Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.)
Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed
Ethernet connectivity
Scripting: Allows creating automation scenarios through scripts.
One/dual button dimming mode: Use with physical switches
Night Mode: Enables to set a specific brightness during nighttime
Auto on/off timers: Enables auto on/off timer setting
Safety: Оver current/voltage/power protection
Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user
Wi-Fi Range Extender & BLE Gateway
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
Supports KNXnet / IP communication

VIEW SPECIFICATIONS SHELLY MOBILE APP

Features

LAN, Wi-Fi, and Bluetooth connectivity

LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup when needed.

Light intensity adjustment

Use the dimming function to set the brightness of your lights to your preference.

Power Monitoring

Shelly Pro Dimmer 0/1-10V PM provides precise monitoring of power consumption.

Flexible input control

Use it with your existing switches, no matter if they’re single or dual button.

Smart Schedules

Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.

Smart scenes

Set custom scenes by combining Shelly Pro Dimmer 0/1-10V PM with your other Shelly devices

Use Cases

Keep your existing switches

Retrofit your existing lighting system with Shelly Pro Dimmer 0/1-10V PM while keeping your current switches. This smart DIN-rail switch lets you dim lights up or down with a button press, blending modern functionality with your familiar setup.

Precision Control for night and day

Set the perfect lighting for every moment with the Pro Dimmer 0/1-10V PM. At night, “Night Mode” will automatically dim your bathroom or kitchen lights for a gentle glow. You can brighten your driveway lights when parking for better visibility, then automatically dim them to 30% for security and energy savings. With Shelly smart devices, you can easily schedule and manage all your lighting needs, ensuring comfort, safety, and efficiency around the clock.

Easy integration

Achieve precise, customized lighting control for your professional installations. Control your lighting with precision through our app, voice assistants, or your current switch. A simple button press activates pre-set brightness, while holding it down offers smooth dimming, giving you full control right at your fingertips.

Pro Series Features

HTTP/HTTPS webhooks for quick connection

Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.

Smart actions that follow the Sunrise/Sunset

Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.

Automation with weekly scheduling

Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.

Scripting for custom automation

Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.

Caution

Installation of certain Shelly devices must be done by a qualified electrician or authorised installer.

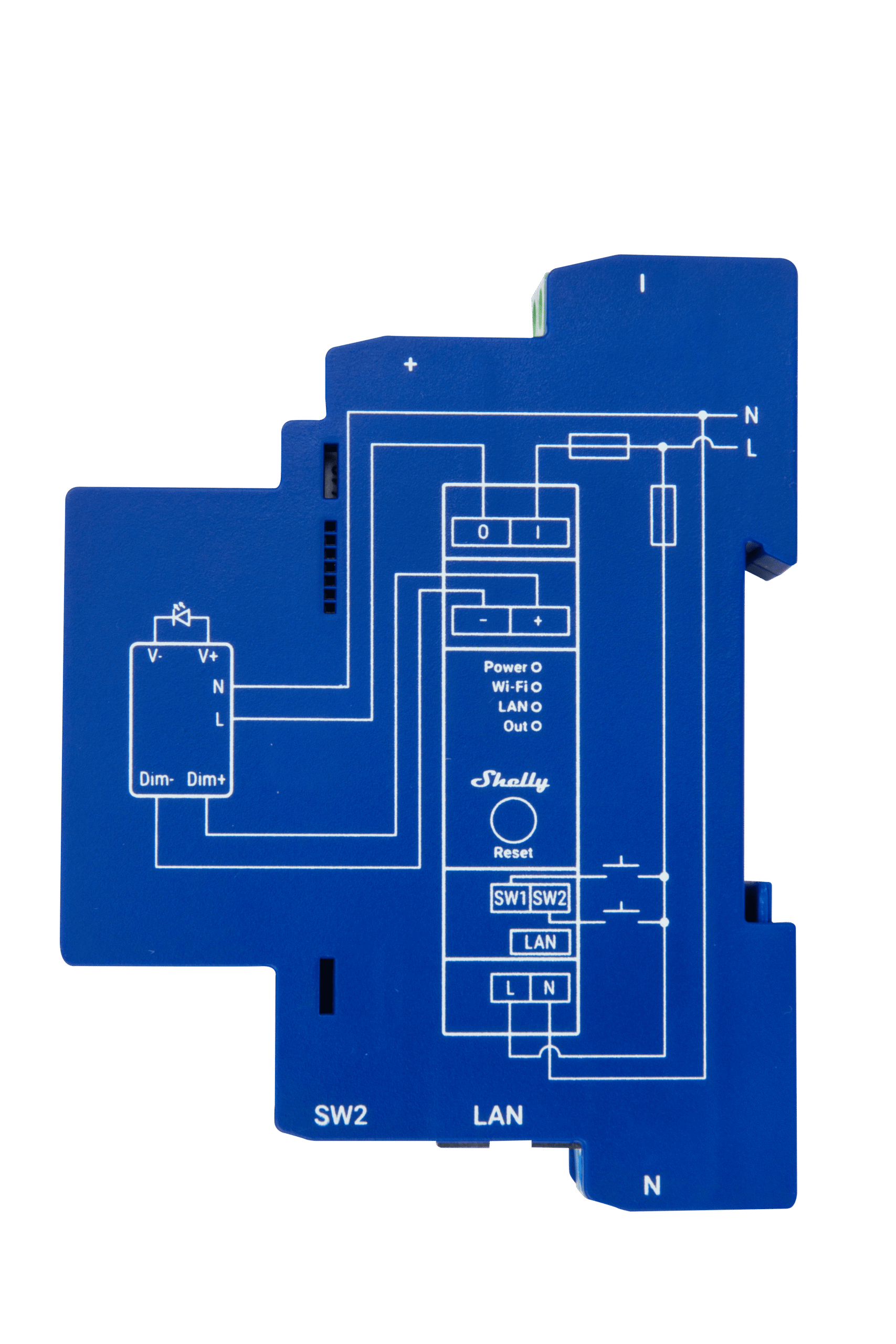

Diagrams

Terminals		Wires
O	Relay output terminal	L	Live (110-240 V) wire
I	Relay input terminal	N	Neutral wire
+	0-10 V⎓ positive terminal
-	0-10 V⎓ negative terminal
SW1, SW2	Switch/button input terminals for light control
LAN	Local Area Network RJ 45 connector
L	Live (110-240 V~) terminal
N	Neutral terminal
Dim+/Dim-	Positive/negative terminal of the LED driver
V+/V-	Positive/negative output of the LED driverr

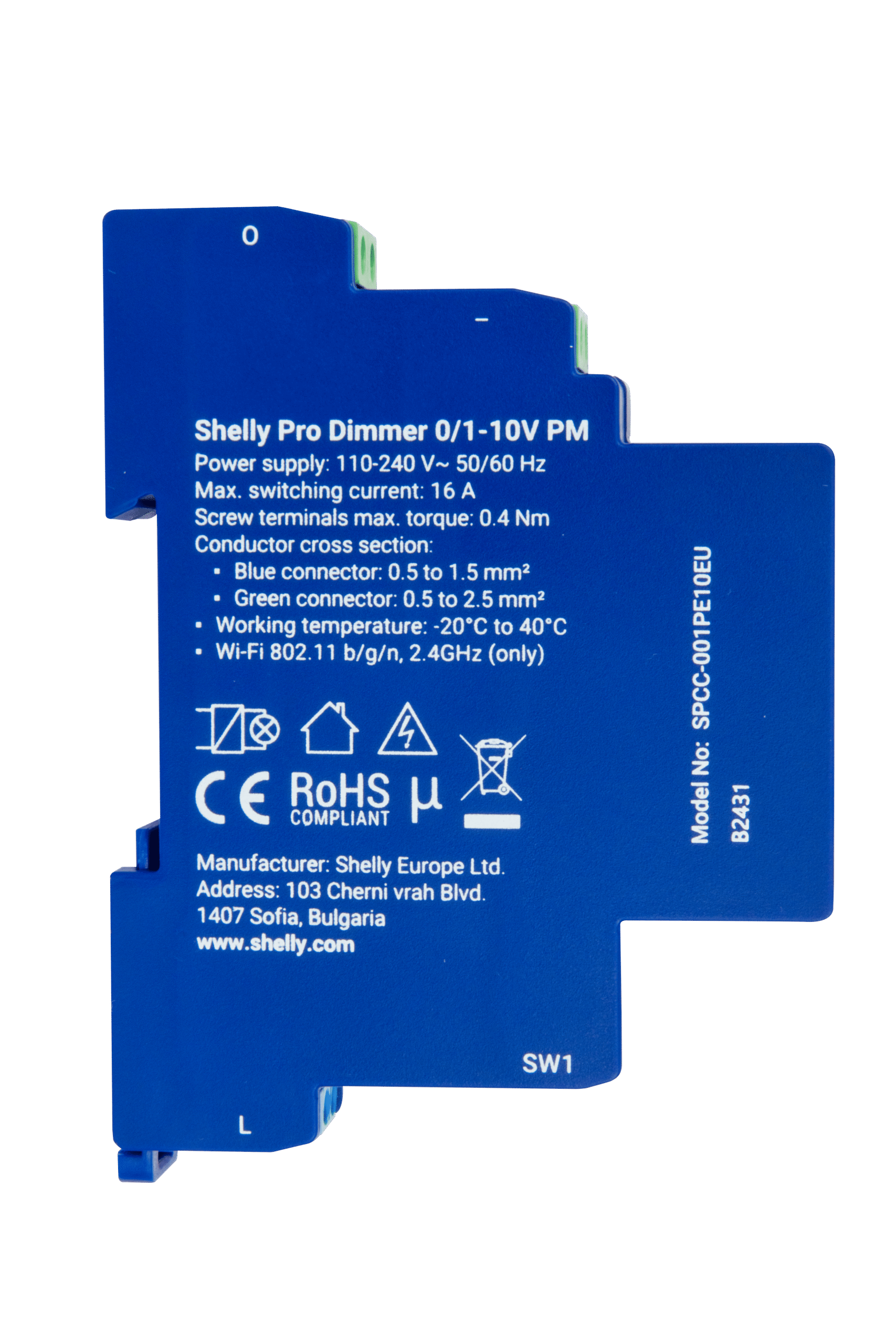

Specifications

Physical
Size (HxWxD):	94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in
Weight:	70 g / 2.5 oz
Screw terminals max torque:	0.4 Nm / 3.54 lbin
Conductor cross section:	0.5 to 2.5 mm² / 20 to 14 AWG (green connectors) 0.5 to 1.5 mm² / 20 to 16 AWG (blue connector)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Mounting:	DIN rail
Shell material:	Plastic
Shell color:	Blue
Connectors color:	Green Blue
Environmental
Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 V~
Power consumption:	< 3 W
External protection:	10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
0-10V/1-10V voltage control type:	Current sourcing
Output circuits rasting
Max. switching voltage:	240 V~
Max. switching current:	16 A
Sensors, meters
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Power and energy meters:	Active and apparent power Active and apparent energy Power factor Fundamental active and fundamental reactive energy
Measurement data storage:	No
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	4.2
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP32-D0WDQ6
Clock frequency:	40 Mhz
Flash:	8 MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes
Advanced schedules	Yes
KVS (Key-Value Store):	Yes
